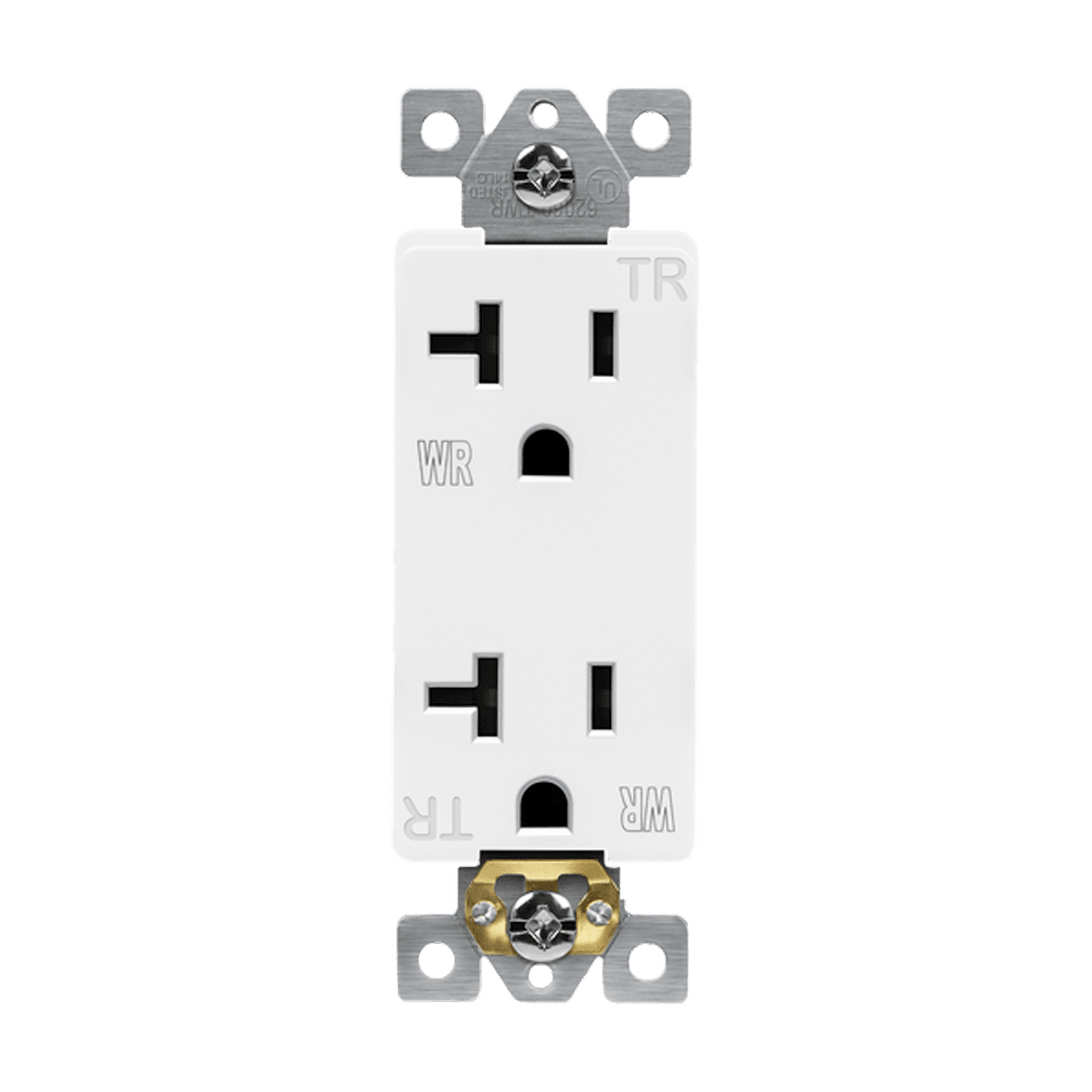

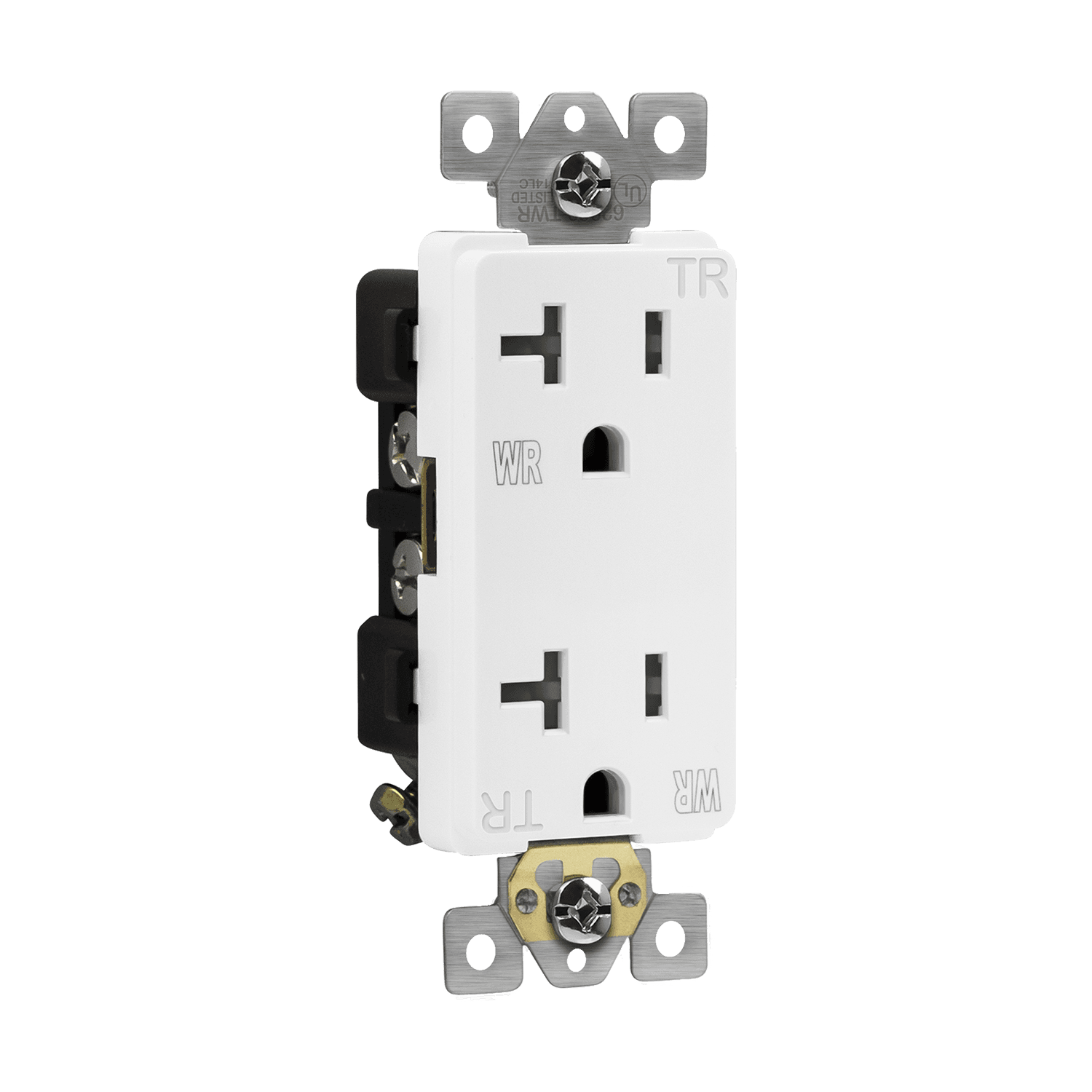

Commercial Grade 20A Decorator Style Tamper and Weather Resistant Duplex Receptacle, 5-20R - White
1 / 2

Commercial Grade 20A Decorator Style Tamper and Weather Resistant Duplex Receptacle, 5-20R

62060-TWRSKU: 62060-TWR-W

Commercial grade receptacles are rated for a variety of standard configurations. Tamper-resistant shutters prevent foreign objects from being inserted into the device. Each decorator receptacle is equipped with break-off plaster ears and tabs to allow for easy alignment and 2-circuit conversion. All decorator receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Weather-resistant receptacles like this can be installed in wet or damp locations where challenging conditions can cause premature failure due to cracked covers and corrosion.

Available Colors

Made of thermoplastic material
Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Optional grounding with self-grounding clip or green terminal screw
Break-off tabs for easy two-circuit conversion
Push-in #14 AWG Cu solid wire for 15A branch circuit only
Removable yoke tabs for ideal alignment
Terminal screws backed out ready for wiring
Combination Slot/Phillips head mounting and terminal screws ease installation
Heavy-duty impact resistant thermoplastic construction for long service life in commercial applications
Back and side-wiring terminals accept both solid and stranded wire to ease installation
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
Compliant with 2017 NEC Article 406.12
