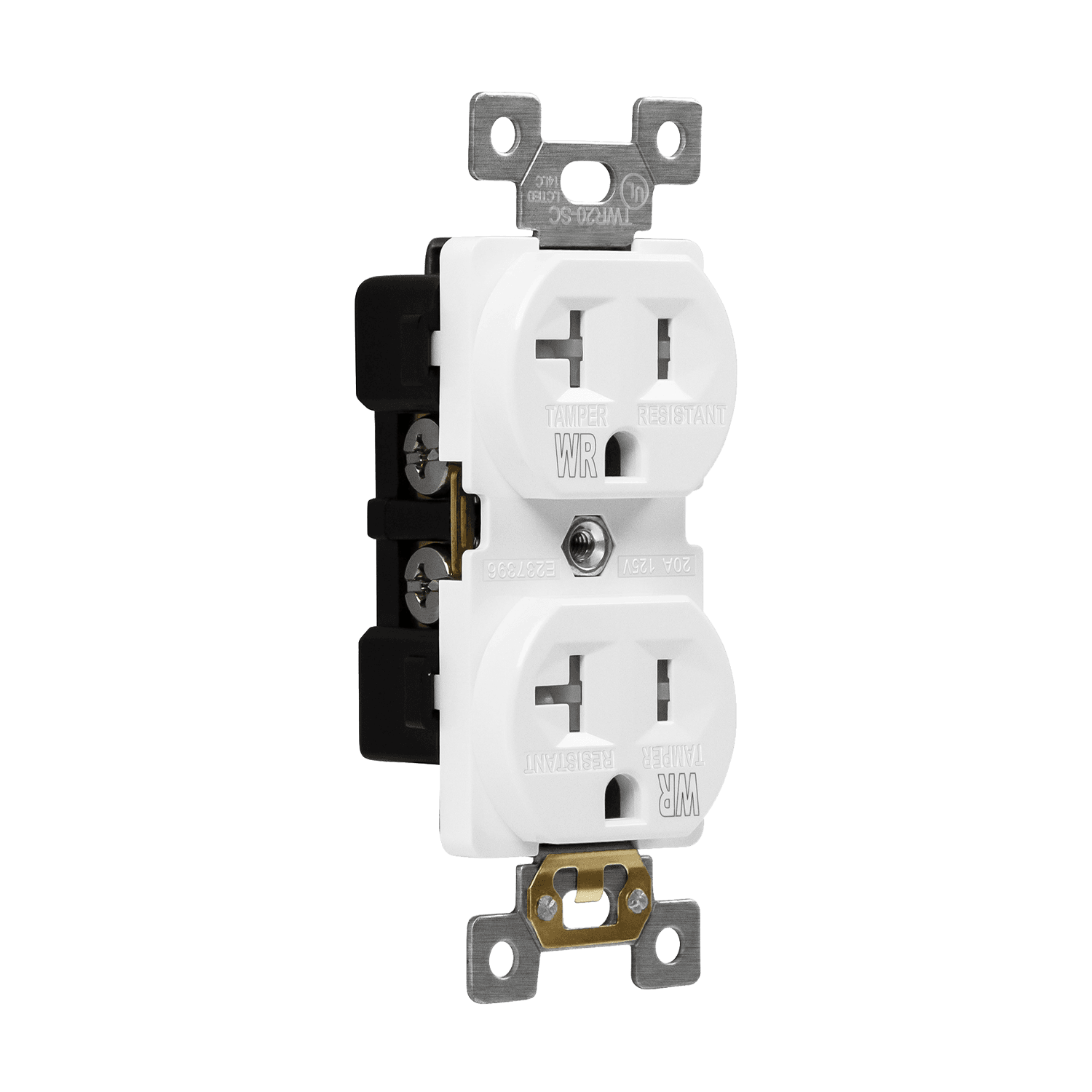

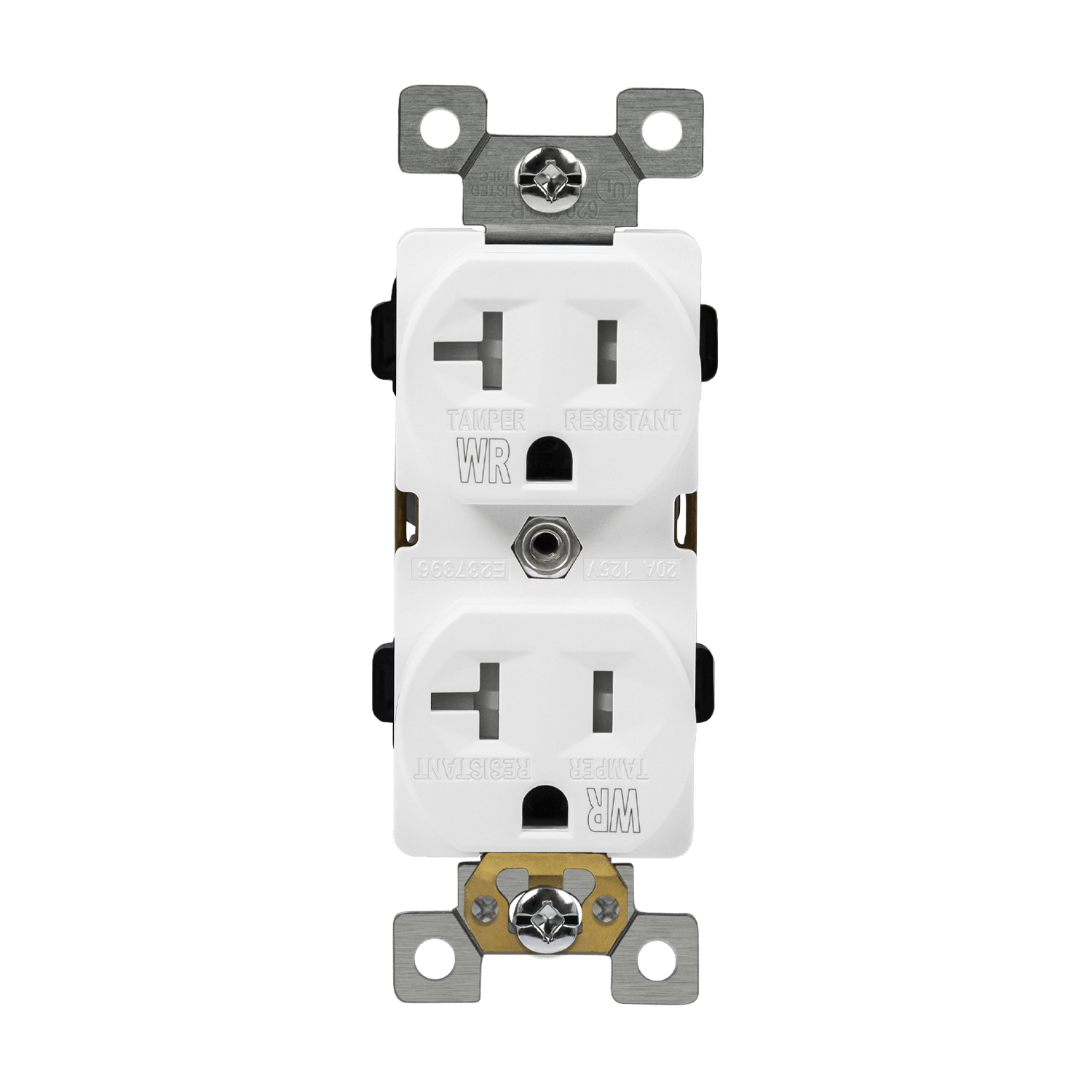

Commercial Grade 20A Tamper and Weather Resistant Duplex Receptacle, 5-20R - White
1 / 2

Commercial Grade 20A Tamper and Weather Resistant Duplex Receptacle, 5-20R

62040-TWRSKU: 62040-TWR-W

Commercial grade receptacles are rated for a variety of standard configurations. Tamper-resistant shutters prevent foreign objects from being inserted into the device. Each duplex receptacle is equipped with break-off tabs to allow for easy alignment and 2-circuit conversion. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Weather-resistant receptacles like this can be installed in wet or damp locations where challenging conditions can cause premature failure due to cracked covers and corrosion.

Available Colors

Made of thermoplastic material
Tamper-resistant receptacle improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Back and side wired
Shallow design for maximum wiring room
Removable yoke tabs for ideal alignment
Terminal screws backed out ready for wiring
Combination Slot/Phillips head mounting and terminal screws ease installation
2-year warranty
Environmental: flammability UL94, V2 rating
Operating temperatures: from -104ºF (without impact) to 167ºF maximum continuous
UL listed
