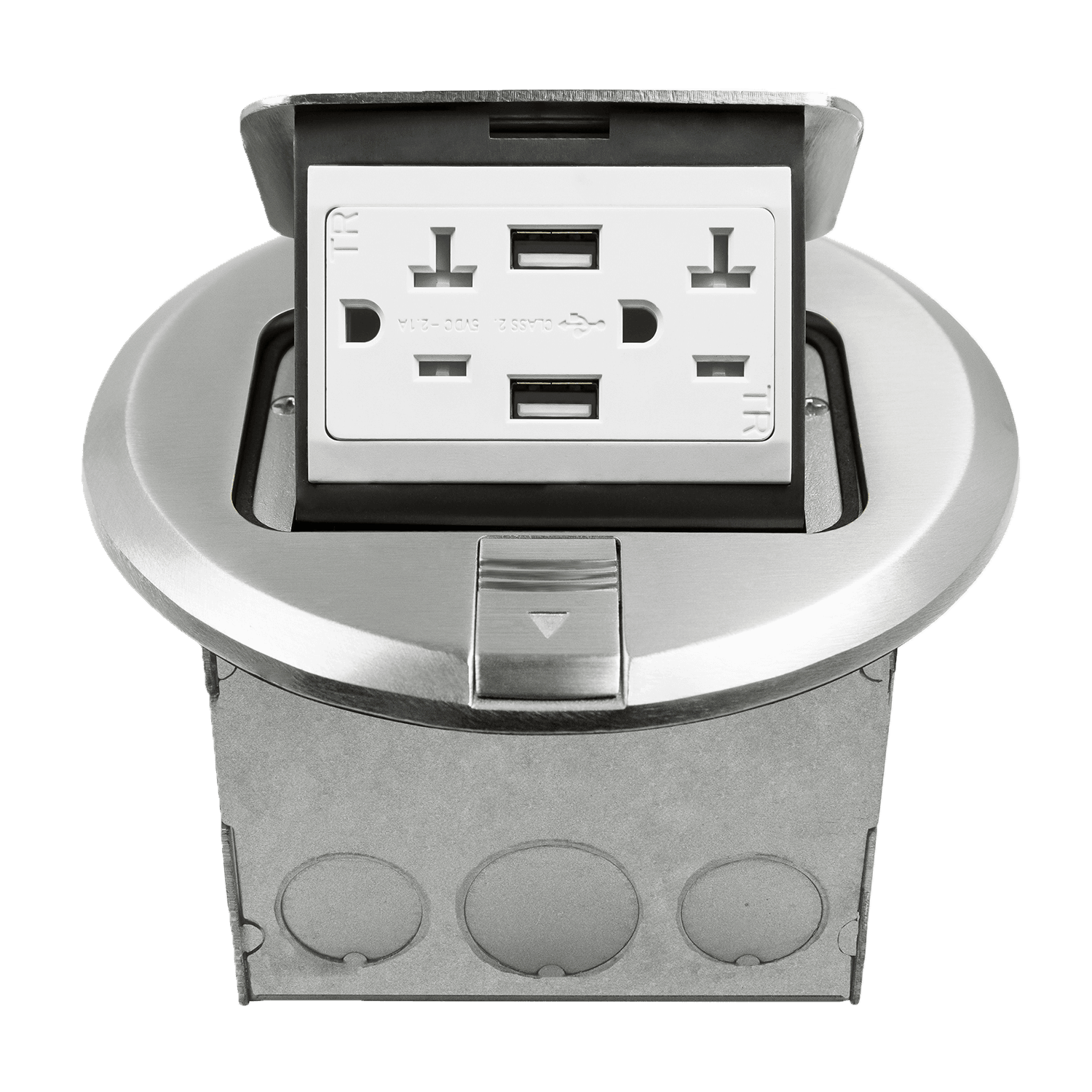

Nickel-Plated Brass Round Pop-up Floor Box Assembly with 20A Tamper-Resistant Duplex Receptacles and 2.1A USB Charging Ports
The ENERLITES 961501-S-USB is a 1-gang nickel-plated brass round pop-up floor box assembly with a tamper-resistant, USB charging receptacle. The receptacle features duel USB type-A ports for a combined total output of 2.1 Amp. It also features 20A tamper-resistant duplex receptacles, which include internal shutters to prevent the insertion of foreign objects. The floor box easily pops up for easy access to power; simply snap the cover closed when not in use.
- Nickel-plated brass pop-up floor box assembly, 6" diameter
- Receptacle rating: 125 VAC, 20 Amp
- 2 USB Type A output: 5 VDC, 2.1 Amp total
- Heavy duty stylish metal cover recesses into the floor when not in use reducing above floor height to 5/16 inch. Press button to access
- Terminal block is pre-wired for easy access, just insert the wires and tighten the screws
- Flooring types: Tile, stone, wood, laminate, carpet, concrete and vinyl
- Tamper-resistant receptacle in compliance with 2017 NEC Article 406.12
- Box material: pre-galvanized steel
- Knockout size: 1/2" and 3/4"
- Metal box installation to sub-floor with adjustable height up to 1" depth
- Compliance with 2017 NEC Article 314.27 for floor boxes
- Two-year limited warranty
- Model Number: 961501-S-USB
